D200

Product ID #

D200

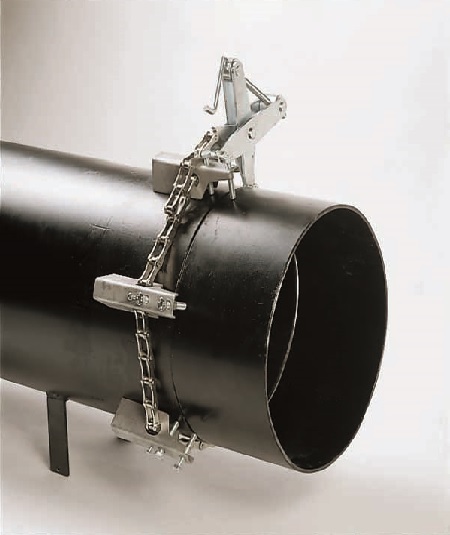

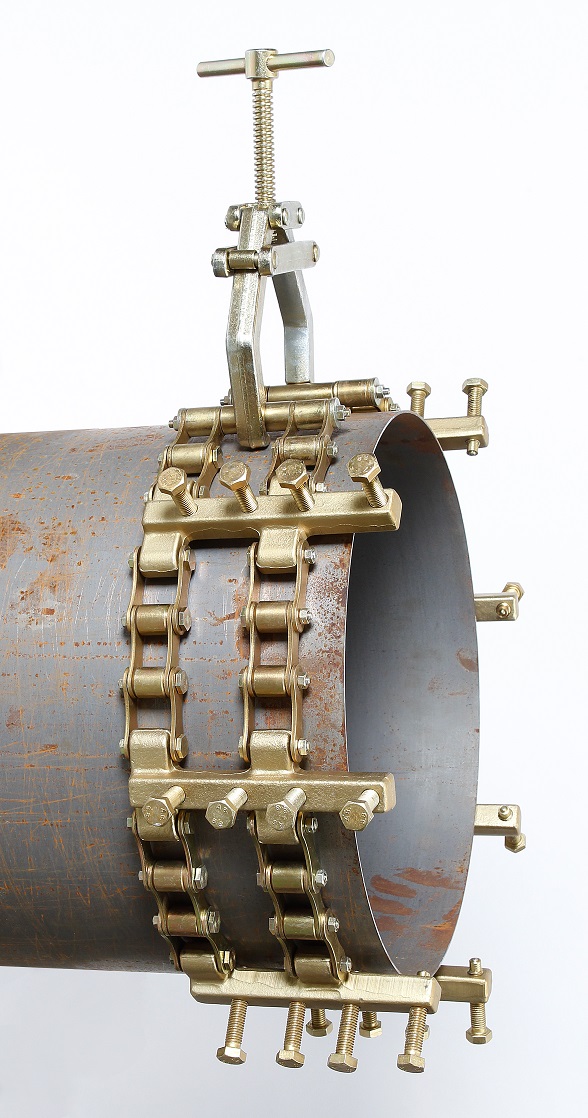

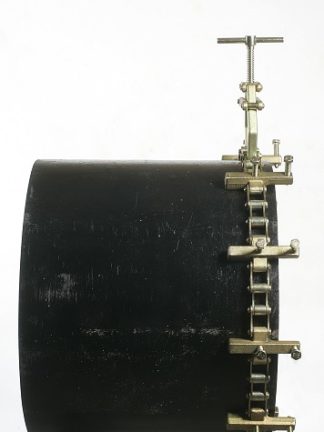

S200, D200 and DK200 is Chain Clamps that can adjust and align Pipes with a wall-thick-ness up to 12,7 mm. The Chain Clamps can always be modified to smaller or larger Pipe dimensions simply by changing the number of Chain Links and Jack-Bars.

Product Specifications

S200 D200 DK200

		S200		D200		DK200
Range	No. Jack-bars	Cat. No.	Weight kg	Cat. No.	Weight kg	Cat. No.	Weight kg
8 – 12″	6	S200812	9,3	D200812	18,6	DK200812	21,6
8 – 16″	7	S200816	10,5	D200816	20,1	DK200816	23,9
8 – 20″	9	S200820	12,9	D200820	23,1	DK200820	28,0
8 – 24″	11	S200824	15,3	D200824	26,1	DK200824	32,0
8 – 28″	13	S200828	17,7	D200828	29,1	DK200828	36,1
8 – 32″	14	S200832	18,8	D200832	30,6	DK200832	38,2
8 – 36″	16	S200836	21,2	D200836	33,6	DK200836	42,2
8 – 40″	18	S200840	23,6	D200840	36,6	DK200840	46,3
8 – 44″	19	S200844	24,8	D200844	38,1	DK200844	48,4
8 – 48″	21	S800848	27,2	D200848	41,2	DK800848	52,5
8 – 52″	23	S200852	29,5	D200852	44,2	DK200852	56,6
8 – 56″	25	S200856	31,9	D200856	47,2	DK200856	60,7
8 – 60″	26	S200860	33,1	D200860	48,7	DK200860	62,7
